Offered in three configurations, the Super B RockR, the Tandem Lead RockR, and the Tridem RockR, Doepker has offered this appealing design to help save you money on the longer hauls. By removing only a couple of pins, you also have the ability to choose which side you want to unload to. Visit your local dealer to view and discuss all of the great and numerous Doepker advantages and options on this trailer.jpg)
|
|
STANDARD FEATURES |
|
Configurations |
Super B with 21' Tub on Lead and Rear |
|
Overall Width |
8 1/2' |
|
Capacity |
Approx 25 Cubic Yards per Trailer |
|
Tare Weight |
12,020 kg (26,500 lbs) |
|
GVWR |
Lead - 35,000 kg (77,162 lbs), Rear - 35,000 kg (77,162 lbs) |
|
Landing Gear |
Jost Magnum 2 Speed Landing Gear |
|
King Pin |
Lead Set at 22" - 3/8" Coupler Plate |
|
Main Beams |
Web: High Tensile Steel |
|
Tub |
1/8" or 0.1250" Hardox 450 |
|
Cylinder |
6" Dual Acting Hydraulic Cylinders |
|
Ladder |
Ladder D/S on Frame Ahead of Suspension |
|
Back of Trailer |
Push/Tow Lugs at Back of Rear Trailer |
|
Air System |
Aluminum Air Tanks |
|
Tires |
Michelin or Sailun |
|
Rims |
Various Steel and Aluminum Options |
|
Serial Plate(s) |
Canada/U.S. |
|
Safety Certified |
Yes |
|
|
SUSPENSION |
|
System |
Hendrickson Intraax AAT 25K LDA15" Air Ride 25,000 lbs with Cam Tube Enclosures |
|
Wheel Seals |
Stemco Guardian |
|
Brakes |
16 1/2" x 7" Extended Life |
|
Antilock Braking System |
2S2M on Lead, 2S1M on Rear |
|
Axle Spread |
Lead - 60" Tridem, Rear - 49" Tandem, 77 1/2" Track Width |
|
Auto Slack Adjusters |
Gunite |
|
Spring Brake Pots |
30/30 TSE Omnibrake |
|
5th Wheel |
Holland Sliding Lower 5th - 24" Slide |
|
Wheel End |
Cast Hub and Drum |
|
|
PAINT AND FINISH |
|
Blast |
Completely Steel Shot Blasted |
|
Special Coatings |
Pure Zinc on Complete Steel Outside |
|
Primer |
PPG Epoxy Primer Inside and Out |
|
Top Coat |
PPG Urethane / Acrycote Systems - All Colors Available |
|
Professional Cure System |
Entire Trailer put in Heat Ovens for Optimal Paint Adhesion and Cure |
|
Safety |
Reflective Tape |
|
|
LIGHTING |
|
Wiring Harness |
Severe Duty Sealed Harness System |
|
Lighting |
Trucklite LED as per CMVSS with Side Signals |
|
|
TARP |
|
Tarp |
Michel's Aero SideKick - Mesh |
|
Tarp Openers |
Electric |
|
|
PROTECTIVE FEATURES |
|
Fenders |
Galvanized Flat Fenders at Front of Lead |
|
Mudflaps |
Mudflaps at Rear |
|
Placard Holders |
Optional: On Each Side |
RockR Tandem Lead
.jpg)

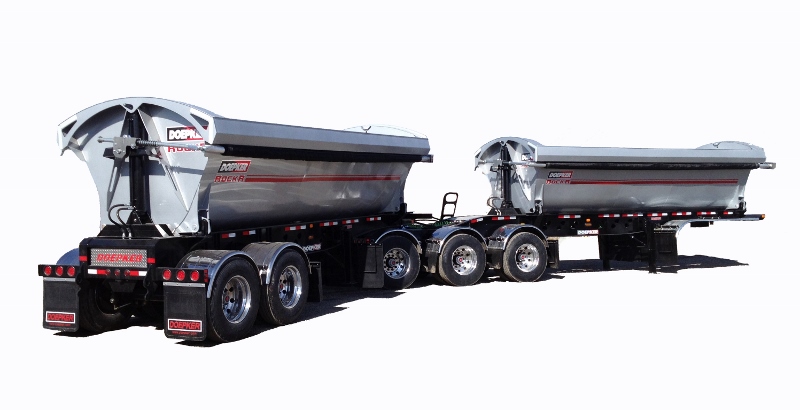

RockR Super B
| Doepker Industries Ltd. provides 100% parts and Labor coverage on all components for a period of 90 days from in-service date with the exception of tires and ABS sensor alignment. After the 90 day period, supplier warranty coverage applies. Consequential damage is not covered. | |
| FOR MODELS 2007 and NEWER | |
| FRAME: |
3 Year: 100% Parts and Labour 4th Year: 50% Parts Only 5th Year: 25% Parts Only |
| BOX (IMPACT, PUP, QUADS): | 3 Year: 100% Parts and Labour |
| PAINT: | 1 Year: Workmanship 1 Year: Material as per Manufacturer Warranty |
| WHEEL ALIGNMENT: | 30 Days: From In-service Date |
WIRING |
|
| Wiring Corrosion | 1 Year: 100% parts and Labor against corrosion on greased electrical wiring and greased ABS connections |
| Trucklite Wiring Harness | 5 Year: Harness and junction box for manufacture defects. Parts replacement only Corrosion is not accepted as warrantable beyond the Doepker coverage |
| Trucklite Lights | Lifetime: LED lights for manufacture defects. Parts replacement only Corrosion is not accepted as warrantable beyond the Doepker coverage |
| Doepker Wiring & Install | 1 Year: 100% parts and Labor due to manufacturing defect or workmanship |
VALVES |
|
| Sealco | 2 Year: From manufacture of valve. 100% parts replacement and Labor allowance for defects in material or workmanship |
| Bendix | 1 Year: From in-service date. 100% parts replacement and Labor allowance for defects in material or workmanship |
| ZF ABS | 3 Year or 300,000 Mile: 100% parts replacement and Labor allowance |
| Wheel Sensor Alignment | 30 Day |
FENDERS |
|
| Alum / Galvanized | 6 Month: From date of installation against defective workmanship. Parts replacement only |
| Minimizer (Plastic) | Click here for manufacturer's warranty details |
RIMS |
|
| Steel (Maxion) | 5 Year: From date of manufacture if unserviceable due to functional defects in material or workmanship |
| Steel (Accuride) | 1 year: Parts only from date of manufacture against any material defects or workmanship, exluding finish |
| Aluminum (Alcoa) | 5 Year: From date of manufacture for defects in material or workmanship |
5th WHEEL / LANDING GEAR |
|
| Jost 37 Series 5th Wheel | 5 Year: Parts and Labor for defects in material and workmanship |
| Jost Landing Gear (Mag 500) | 5 Year: Parts and Labor for defects in material and workmanship |
| Jost King Pin | 5 Year: Parts and Labor for defects in material and workmanship |
| Holland 5th Wheel (3500) |
Lifetime: For defects in material or workmanship 6 Year or 600,000 Mile: On wear limits and cracks on standard duty applications Labor allowance is considered for removal, repair, and replacement |
| Holland Landing Gear | 5 Year: Parts replacement from date of manufacture for defects in workmanship 2 Year: Labor allowance is considered for removal, repair, and replacement |
| Holland King Pin | 2 Year: Material or workmanship. Parts only. |
WHEEL END |
|
| Tires | As per manufacturer's warranty |
| KML Bearings | 1 Year: From manufacture date free from defects and workmanship. Parts only. |
| Stemco Seals | 1 Year: From manufacture date. Parts and Labor. |
| KIC Drums | Limited Lifetime: For manufacture defects |
| Walther Dura-Light Hubs | Lifetime: For manufacture defects |
| Brake Shoe and Lining | 1 Year or 100,000 Mile: Parts and Labor for manufacture defects |
| TSE OmnBrake Brake Pots | 4 Year Standard Warranty; 5 Year Extended Warranty for National Fleet Partners |
| TSE UltraLife Brake Pots | 6 Year Standard Warranty; 7 Year Extended Warranty for National Fleet Partners |
| Gunite Slack Adjusters | 5 Year/500,000 Miles: Parts. 1 Year/Unlimited: Parts & Labour |
AXLES |
|
| Hendrickson (incl trailing arms) | 5 Year: Parts - 1 Year Labor |
AIR SUSPENSION |
|
| Hendrickson Air Spring | 2 Year or 200,000 Mile: 100% parts replacement 1 Year or 100,000 Mile: Labor |
| Hendrickson Shock Absorber | 2 Year or 200,000 Mile: 100% parts replacement and Labor allowance |
| Tri-Functional Bushing (incl wear pads) |
5 Year or 500,000 Mile: 100% parts replacement 3 Year or 300,000 Mile: Labor allowance |
| Hendrickson Camshafts | 3 Year or 300,000 Mile: 100% parts replacement 1 Year or 100,000 Mile: Labor allowance |
| Hendrickson Camtubes | Highway: 3 Year: Parts and Labor Off-Highway: 3 Year Parts - 1 Year Labor |
MISCELLANEOUS |
|
| Michels' Tarp and Hardware | Pro-rated: Varies with tarp style and type |
| Hydraulic Valves and Plumbing | Guaranteed against manufacture defects on individual basis |
| Accessories | 1 Year: 100% parts and Labor from in-service date for manufacture defects and installation on all Doepker Accessories (IE: Toolboxes, fenders, ladders, pipe bunks…) |
*Warranty is based on normal use, proper maintenance and does not cover wearable items or consequential damage at anytime. |
|
* Used as a guideline only and deemed accurate at time of publishing. Subject to change without notice based on trailer model year, components used and manufacturer changes. See dealer / component website and literature for more details. |
