When you have perfected the design of a flat deck, drop deck and Super B Deck trailer by working with customers, there is only one thing to do to make it even better: keep working with customers. This design simply keeps getting better and better. A specific choice of higher valued, extreme tensile rated steel combined with the perfect mechanical engineering provides you with the high strength and light tare weight to maximize your payload and road life. Available in many different lengths and weight ratings including a model for your steel coil haul, we also offer configurations for hard top and soft top curtain kits. Visit your local dealer to view and discuss all of the great and numerous Doepker advantages and options on this trailer.
STANDARD FEATURES: |
|
| Models | DSL 30 or DSL 50 - Both Available in Tubing or Channel Side Rail |
| Length | 32' Lead; 28' Rear |
| Overall Width | 8 1/2' |
| Deck Height | DSL 30 - Approx 58" at Front and 50" at Back DSL 50 - Approx 58" at Front and 53" at Back |
| Distibuted Load | Distributed Load - All Models - Approx 110,000 lbs DSL 30 - 10' Concentrated Load - Approx 40,000 lbs DSL 30 - 4' Concentrated Load - Approx 30,000 lbs DSL 50 - 10' Concentrated Load - Approx 60,000 lbs DSL 50 - 4' Concentrated Load - Approx 50,000 lbs |
| Tare Weight | DSL 30 - Approx 19,100 lbs DSL 50 - Approx 20,100 lbs |
| GVWR | 35,000 kg - Lead, 35,000 kg - Rear |
| Landing Gear | Jost Magnum 2 Speed Landing Gear |
| King Pin | Lead Set at 30" or 36" - 1/4" or 3/8" Coupler Plate Available Rear Set at 24" - 1/4" or 3/8" Coupler Plate Available |
| Main Beams | Web: 3/16" High Tensile Flange: 3/8" x 6" High Tensile Steel Bottom Flange on Lead of DSL 50 Only: 1/2" x 6" High Tensile Steel |
| Cross Members | DSL 30 - 4" High Tensile Jr I Beam on 18" Centers DSL 50 - 4" High Tensile Jr I Beam on 12" Centers |
| Side Rail - Channel | 6" Channel with 3/8" x 2" Rub Rail with Stake Pockets Set at 48" Centers Optional: 6" Channel with 3/8" x 3" Heavy Duty Rub Rail Optional: Stake Pockets Set at 24" Centers |
| Side Rail - Tubing | Optional: 1/4" Rod Welded on Top of 3" x 4" Tubing - Full Length Both Sides of Trailer |
| Rear Bumper | 10 Gauge Formed Panel Rear Bumper Rear Impact Guard on Rear Trailer Optional: Dock Bumpers on Back of Rear Trailer Optional: Tow Hooks at Back of Rear Trailer |
| Winches | D/S or Staggered Design - 30 Winches (16 on Lead; 14 on Rear D/S, 2 on Rear C/S at Back) 3/8" x 2" Tie Bar on Bottom of Jr I-Beam (Tubing Side Rail Model Only) Optional: 2 Winches at Back of Rear With Cross Pallet Hook Assembly at 4' - 1" Optional: Tarp Hooks on 24" Centers |
| Decking | 2" x 6" T & G Fir Decking Optional: Hardwood Decking Optional: Trans Decking Optional: Coil Option - 2" x 6" T & G Fir Outside Main Rails, Hardwood Inside Main Rails |
| Air System | Aluminum Air Tanks Inline Air Filtration System Built into Glad hands Air Gauge Box with Window |
| Tires | Michelin or BF Goodrich |
| Rims | Various Steel and Aluminum Options |
| Serial Plate(s) | Canada/U.S. |
| Safety Certified | Yes |
SUSPENSION: |
|
| System | Hendrickson Intraax HXL5 Long Life Dressed Axle - AANT-23K-LDA-14 Air Ride with Cam Tube Enclosures Optional: Doepker Auto Lift management System with Meritor Control Valve Optional: Truckweight Wireless Scale System Optional: Chain Axle Slings |
| Brakes | Abex 16 1/2" x 7" Extended Life |
| Antilock Braking System | Meritor Wabco 2S2M on Lead; Optional: 4S2M or 6S4M (with 2 Indicator Lights) Meritor Wabco 2S1M on Rear; Optional: 2S2M or 4S2M |
| Axle Spread | Lead - 60" Tridem, Rear - 49" Tandem, 77 1/2" Track Width |
| Auto Slack Adjusters | Gunite |
| Spring Brake Pots | 30/30 TSE Omnibrake Optional: TSE Ultra-Life |
| Wheel End | Cast Hub and Drum Optional: Duralight Hub and Centrifuse Drum Combinations Optional: Hubodometer - Metric or Imperial |
PAINT AND FINISH: |
|
| Blast Preparation | Completely Steel Shot Blasted |
| Special Coatings | Pure Zinc on Complete Outside Top To Bottom |
| Primer | PPG Epoxy Primer Inside and Out |
| Top Coat | PPG Urethane / Acrycote Systems - All Colours Available |
| Professional Cure System | Entire Trailer put in Heat Ovens for Optimal Paint Adhesion |
| Safety | Reflective Tape |
LIGHTING: |
|
| Wiring Harness | Severe Duty Sealed Harness System Custom Designed by Trucklite for our Light Packages |
| Lighting | Trucklite LED as per CMVSS with Side Signals Optional: Various Custom Packages and Designs Available Optional: Wide load Lights |
PROTECTIVE FEATURES: |
|
| Mudflaps | Doepker Mudflaps at Back of Lead and Rear Trailers Optional: Mudflaps in Front of Brake Bots on Front Axle Optional: Mudflaps Full Width in Front of Landing Gear |
| Fenders | Aluminum Platform at Back of Lead Aluminum Checkerplate Over Center Axle of Tridem Group on Lead Trailer Optional: Full Length Aluminum Checkerplate Fender Over Suspension on Lead Trailer |
| Forklift Brackets | Optional: Forklift Brackets on Lead or Rear Trailer Including Chain Axle Slings |
| Chain Hangers | Optional: Tire Chain Hangers on C/S of Lead Trailer |
| Toolbox & Dunnage Options | Set of Toolbox Brackets on Lead or Rear D/S or C/S for a 43" or 55" Long Box Optional: 24" D x 24" H x 55" L Aluminum Checkerplate Toolbox Optional: 24" D x 24" H x 55" L Premium Smooth Aluminum Toolbox Optional: 24" D x 24" H x 43" L Aluminum Checkerplate Toolbox Optional: 24" D x 24" H x 43" L Premium Smooth Aluminum Toolbox Optional: Various Crossframe and Side Dunnage Options for Both Lead and Rear Trailers |

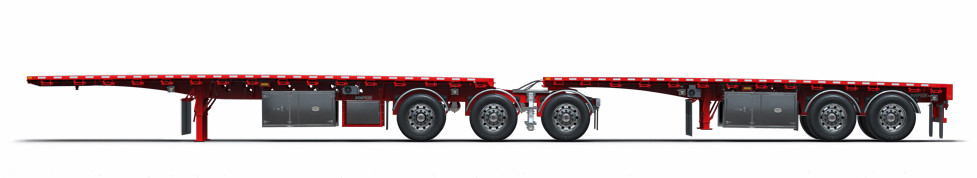

Low Rider (Red) - Pkg 5
Low Rider (Grey) - Pkg 5
Low Rider (Blue) - Pkg 5

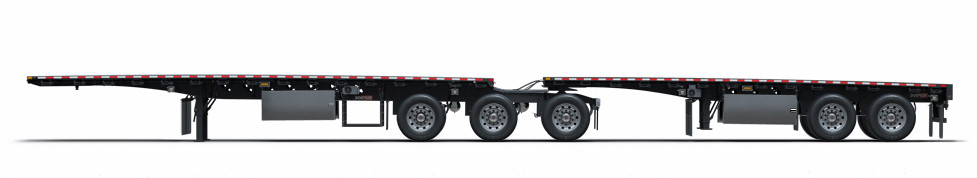

Low Rider (Black) - Pkg 5
Low Rider (Red) - Pkg 4
Low Rider (Grey) - Pkg 4
Low Rider (Blue) - Pkg 4
Low Rider (Black) - Pkg 4
Low Rider (Red) - Pkg 3
Low Rider (Grey) - Pkg 3
Low Rider (Blue) - Pkg 3
Low Rider (Black) - Pkg 3
Low Rider (Red) - Pkg 2
Low Rider (Grey) - Pkg 2
Low Rider (Blue) - Pkg 2
Low Rider (Black) - Pkg 2
Low Rider (Red) - Pkg 1
Low Rider (Grey) - Pkg 1

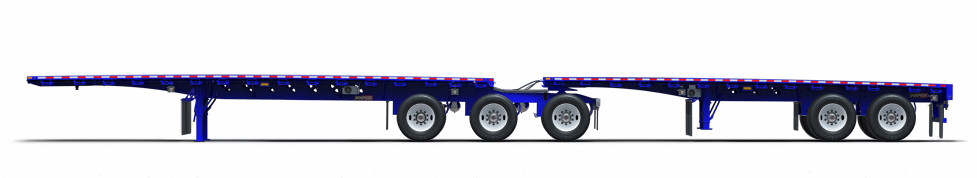

Low Rider (Blue) - Pkg 1

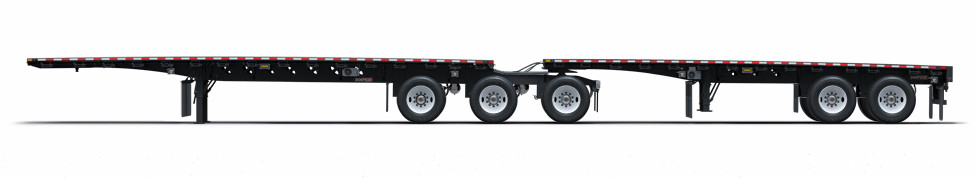

Low Rider (Black) - Pkg 1
| Doepker Industries Ltd. provides 100% parts and Labor coverage on all components for a period of 90 days from in-service date with the exception of tires and ABS sensor alignment. After the 90 day period, supplier warranty coverage applies. Consequential damage is not covered. | |
| MAIN RAIL: | 5 Year: 100% Parts and Labour |
| ALL OTHER STRUCTURE: |
2 Year: 100% Parts and Labour 3rd Year: 100% Parts Only 4th Year: 50% Parts Only 5th Year: 25% Parts Only |
| PAINT: | 1 Year: Workmanship 1 Year: Material as per Manufacturer Warranty |
| WHEEL ALIGNMENT: | 30 Days: From In-service Date |
WIRING |
|
| Wiring Corrosion | 1 Year: 100% parts and Labor against corrosion on greased electrical wiring and greased ABS connections |
| Trucklite Wiring Harness | 5 Year: Harness and junction box for manufacture defects. Parts replacement only Corrosion is not accepted as warrantable beyond the Doepker coverage |
| Trucklite Lights | Lifetime: LED lights for manufacture defects. Parts replacement only Corrosion is not accepted as warrantable beyond the Doepker coverage |
| Doepker Wiring & Install | 1 Year: 100% parts and Labor due to manufacturing defect or workmanship |
VALVES |
|
| Sealco | 2 Year: From manufacture of valve. 100% parts replacement and Labor allowance for defects in material or workmanship |
| Bendix | 1 Year: From in-service date. 100% parts replacement and Labor allowance for defects in material or workmanship |
| Meritor Wabco ABS | 3 Year or 300,000 Mile: 100% parts replacement and Labor allowance |
| Wheel Sensor Alignment | 30 Day |
FENDERS |
|
| Alum / Galvanized / Steel | 6 Month: From date of installation against defective workmanship. Parts replacement only |
| Minimizer (Plastic) | Click here for manufacturer's warranty details |
RIMS |
|
| Steel (Hayes Lemmerz) | 5 Year: From date of manufacture if unserviceable due to functional defects in material or workmanship |
| Aluminum (Alcoa) | 5 Year: From date of manufacture for defects in material or workmanship |
5th WHEEL / LANDING GEAR |
|
| Jost 37 Series 5th Wheel | 5 Year: Parts and Labor for defects in material and workmanship |
| Jost Landing Gear (Mag 500) | 5 Year: Parts and Labor for defects in material and workmanship |
| Jost King Pin | 5 Year: Parts and Labor for defects in material and workmanship |
| Holland 5th Wheel (3500) |
Lifetime: For defects in material or workmanship 6 Year or 600,000 Mile: On wear limits and cracks on standard duty applications Labor allowance is considered for removal, repair, and replacement |
| Holland Landing Gear | 5 Year: Parts replacement from date of manufacture for defects in workmanship 2 Year: Labor allowance is considered for removal, repair, and replacement |
| Holland King Pin | 2 Year: Material or workmanship. Parts only. |
WHEEL END |
|
| Tires | As per manufacturer's warranty |
| KML Bearings | 1 Year: From manufacture date free from defects and workmanship. Parts only. |
| Stemco Seals | 1 Year: From manufacture date. Parts and Labor. |
| KIC Drums | Limited Lifetime: For manufacture defects |
| Walther Dura-Light Hubs | Lifetime: For manufacture defects |
| Brake Shoe and Lining | 1 Year or 100,000 Mile: Parts and Labor for manufacture defects |
| TSE OmniBrake Brake Pots | 4 Year Standard Warranty; 5 Year Extended Warranty for National Fleet Partners |
| TSE UltraLife Brake Pots | 6 Year Standard Warranty; 7 Year Extended Warranty for National Fleet Partners |
| Meritor Slack Adjusters | 5 Year/500,000 Miles: Parts. 1 Year/Unlimited: Parts & Labour |
AXLES |
|
| HXL5 Greased Wheel End | 5 Year: On-Highway - Parts and Labor 3 Year: Off-Road - Parts and Labor |
| Hendrickson (incl trailing arms) | 5 Year: Parts - 1 Year Labor |
AIR SUSPENSION |
|
| Hendrickson Air Spring | 2 Year or 200,000 Mile: 100% parts replacement 1 Year or 100,000 Mile: Labor |
| Hendrickson Shock Absorber | 2 Year or 200,000 Mile: 100% parts replacement and Labor allowance |
| Tri-Functional Bushing (incl wear pads) |
5 Year or 500,000 Mile: 100% parts replacement 3 Year or 300,000 Mile: Labor allowance |
| Hendrickson Camshafts | 3 Year or 300,000 Mile: 100% parts replacement 1 Year or 100,000 Mile: Labor allowance |
| Hendrickson Camtubes | Highway: 3 Year: Parts and Labor Off-Highway: 3 Year Parts - 1 Year Labor |
MISCELLANEOUS |
|
| Accessories | 1 Year: 100% parts and Labor from in-service date for manufacture defects and installation on all Doepker Accessories (IE: Toolboxes, fenders, ladders, pipe bunks…) |
*Warranty is based on normal use, proper maintenance and does not cover wearable items or consequential damage at anytime. |
|
* Used as a guideline only and deemed accurate at time of publishing. Subject to change without notice based on trailer model year, components used and manufacturer changes. See dealer / component website and literature for more details. |
