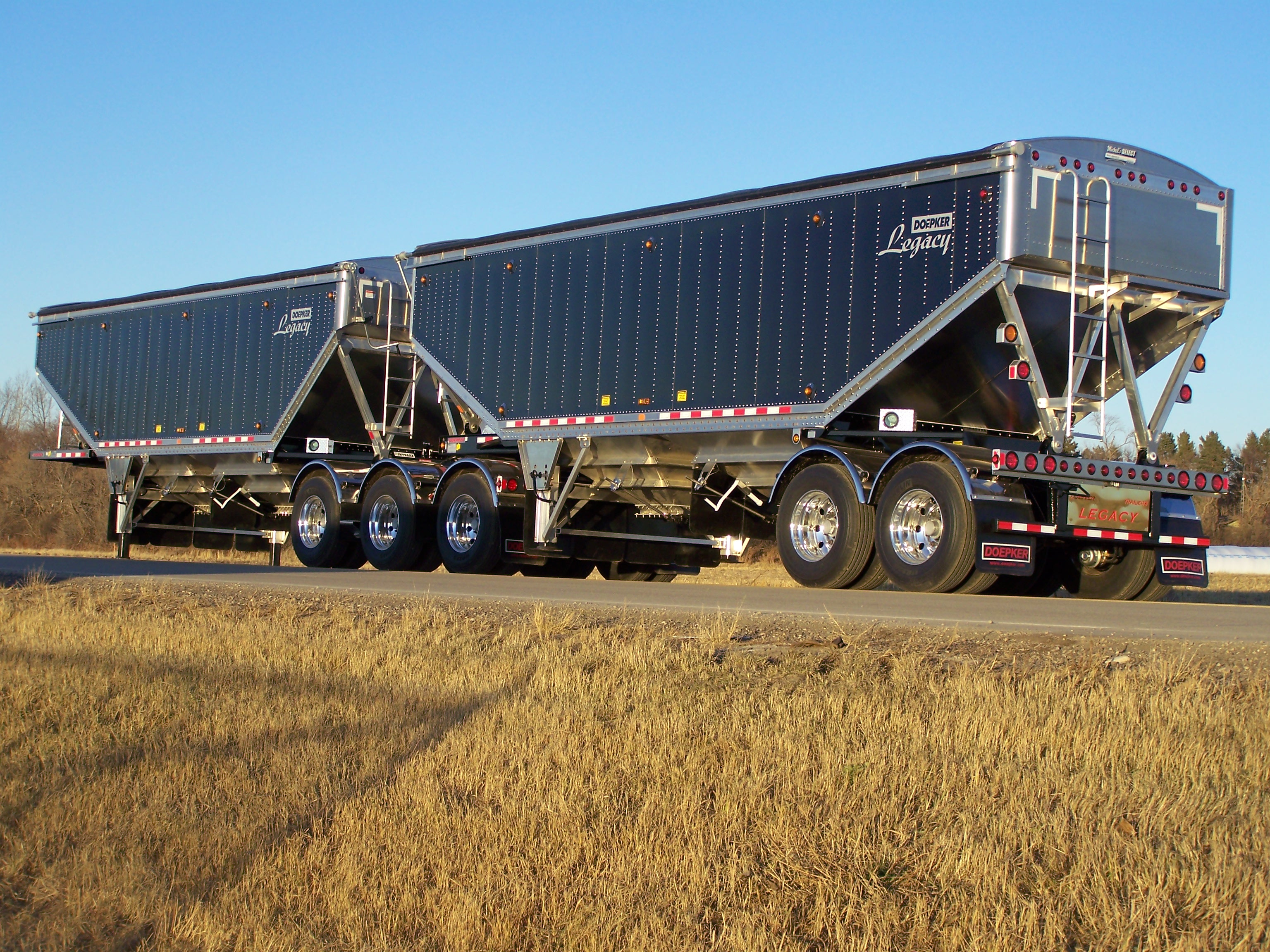

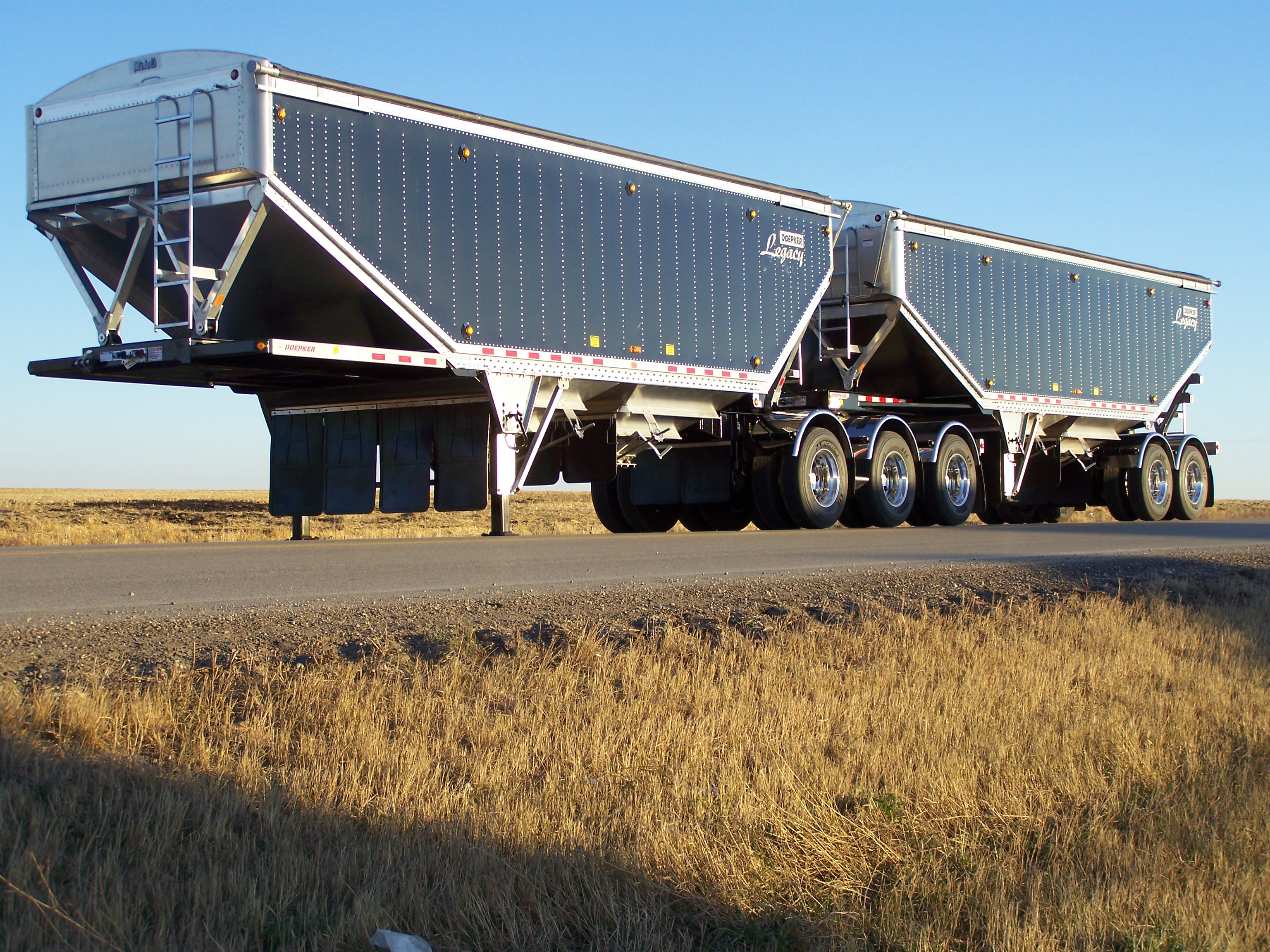

Legacy Open End Super B Grain Trailer

The Doepker Legacy is the lightest and strongest aluminum Super B grain trailer on market.  Our Doepker designed Uni-Link system offers innovative, cutting edge technology that gives strength never seen before on an aluminum trailer.  Our exclusive 1-piece aluminum double wall slope uses a minimal amount of rivets and has no horizontal seams or rivets giving unmatchable cleanout.  The smooth double-wall aluminum design gives the best of both worlds: an aerodynamic outer skin complimenting optimal inside cleanout.  Our "first to market" open end dual aluminum wall design allows you to easily clean and maintain the suspension and slope area from road contaminants that will ensure the Legacy is the longest lasting trailer on the road.  Couple this to massive curb appeal in combination of its ability to carry the largest payload makes the Legacy irresistible.  Visit your local dealer to view and discuss all of the great and numerous Doepker advantages and options on this grain trailer.

Download ouR Brochure


Doepker Uni-Link

The innovative Doepker Uni-Link design provides unbeatable strength.

One-Piece Aluminum Double Wall Slopesheets

One-piece aluminum double wall slopes provide excellent cleanout inside and are easy to maintain outside.

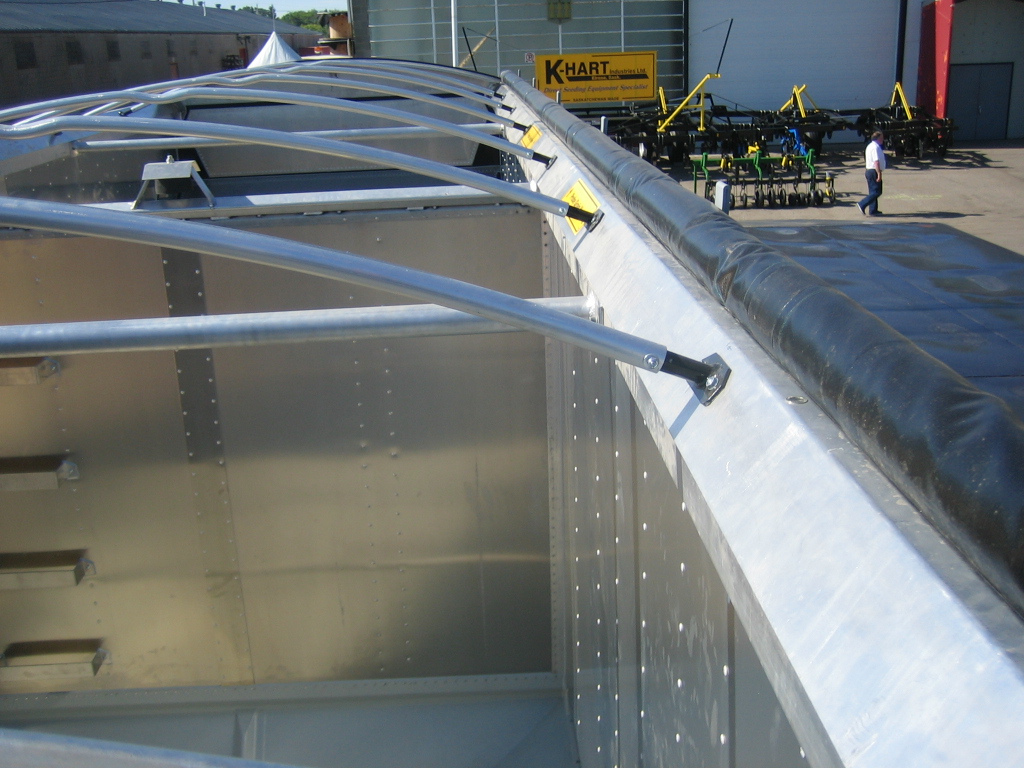

Extruded Top Rail

The sloped top rail enhances cleanout - 1 less place for product to hang up in the trailer

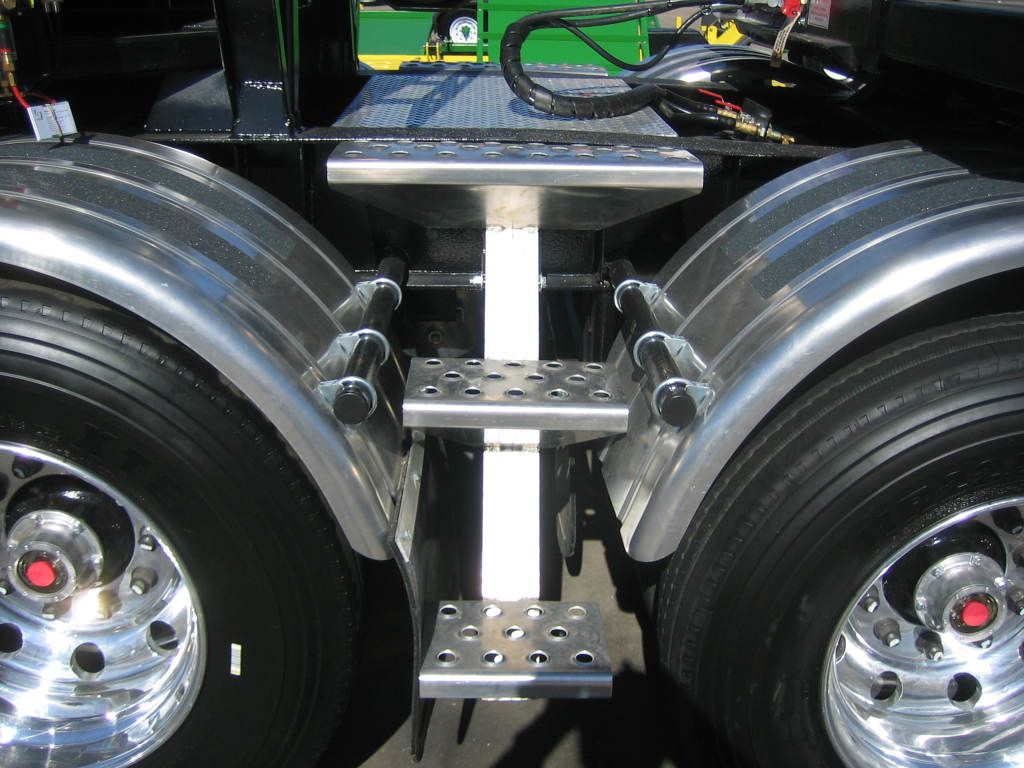

3 Tier Pedestal Step

User friendly and stable 3 tier pedestal step provides easy access between the trailers for tarp operation.

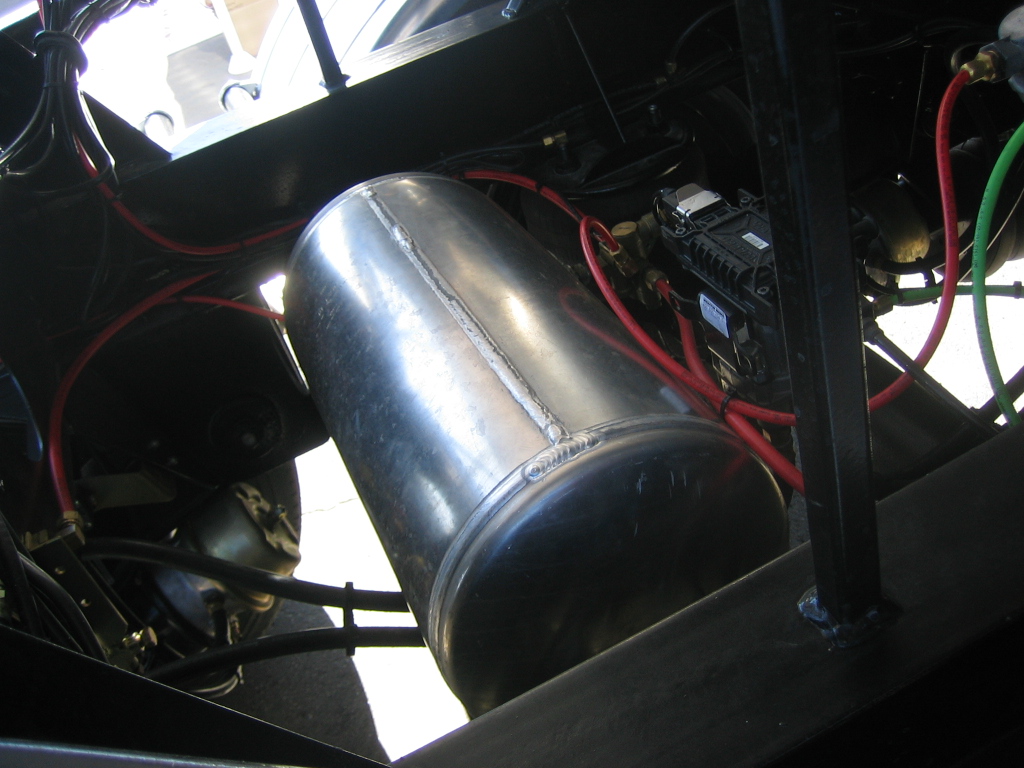

Aluminum Air Tanks

Standard aluminum air tanks not only hold up better and are more appealing over time, they also help eliminate corrosion. This corrosion that is found inside steel air tanks also passes through expensive valving on the trailer. Aluminum air tanks will increase air valve life.

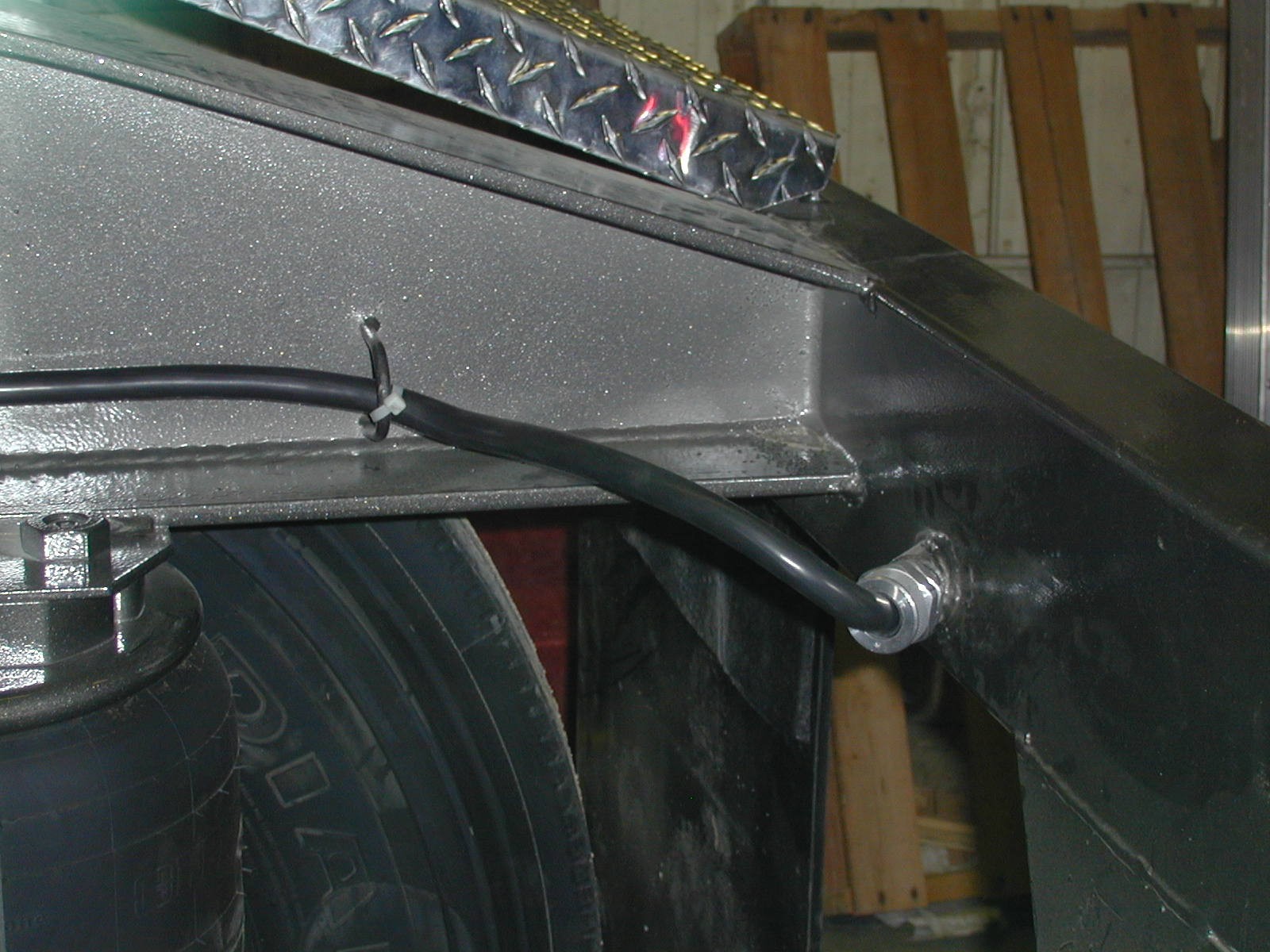

Sealed Wiring Harness

Our custom sealed wiring harness specifically made for our Canadian environments ensures optimum life of the wiring on your trailer.



Length 27'10" Lead;  30'9" Rear
Capacity Lead Approx 1440 Cu Ft;  Rear Approx 1575 Cu Ft
Tare Weight Approx 19,500 Lbs with Standard Equipment
GVWR Lead 35000 Kg;  Rear 35000 Kg
Landing Gear Jost Aluminum 2 Speed Sealed Unit
King Pin Lead Set at 30" with 1/4" Coupler Plate
Rear Set at 18" with 1/4" Coupler Plate
Catwalks and Ladders Aluminum on Inside and Outside
Walls Double Aluminum Skins with Aluminum Uprights Between Skins
82" Overall - 144" to Top of Tarp Hood

10 Gauge Aluminum; Rack & Pinion Chutes
19" X 20" Openings; 22" Ground Clearance on 22.5 Tires
Double Hopper Bands
Chute Lids Self Cleaning, Opens Past Hopper, Quick Detach
Chute Cranks D/S and C/S
Optional:  D/S only
Slopes and End Walls One-Piece 14 Gauge Plain Aluminum Double Wall Slopesheet - 28 Degree at Front of Lead and Rear and at Back of Rear, 42 Degree at Back of Lead
End Wall Panels - 12 Gauge at Front of Lead and Back of rear with 10 Guage at Back of Lead and Front of Rear Trailer
Air System

Aluminum Air Tanks
Inline Air Filtration System Built into Glad hands
Air Gauge Box with Window
Optional:  Air Chuck in Air Gauge Box
Optional:  Relocate Air Gauge Box From Back of Rear Trailer to Front of Rear Trailer
Tow Hooks At Back of Rear Trailer
Tires Michelin
Rims 22.5 or 24.5:  Various Steel and Aluminum Options
Serial Plate(s) Canada / U.S
Safety Certified Yes



Blast Preparation Fully Steel Shot Blasted on All Steel Sections
Special Coatings Pure Zinc on Complete Steel
Duraguard Full Duraguard on Upper 5th and Suspension
Primer PPG Epoxy Primer Inside and Out
Top Coat PPG Urethane / Acrycote Systems - All Colours Available
Paint Cure System Entire Trailer put in Heat Ovens for Optimal Paint Adhesion
Wall Panel Color
Pre-painted White with "Legacy" Decal in Black Letters
Optional: Pre-painted Black with "Legacy" Decal in Silver Letters
Optional: Pre-painted Medium Charcoal Metallic with "Legacy" Decal in Silver Letters
Optional: Pre-painted Light Silver Metallic with "Legacy" Decal in Black Letters
Safety Reflective Tape
Sealing Systems Silicone on Inside Wall Seams / Slope Sheet Seams




Hendrickson Intraax AANT 23K LDA 15" Air Ride - HXL5 Hendrickson Long Life Dressed Axle
Optional:  Hendrickson TireMax Inflation System
Optional:  Doepker Auto Lift Management System with Meritor Control Valve
Optional:  Truckweight Wireless Scale System
Wheel Seals Federal Mogul
Brakes 16 1/2" X 7" Extended Life
Optional: Bendix Air Disc Brakes
AntiLock Braking
Meritor Wabco 2S2M on Lead, 2S1M on Rear
Optional: 4S2M Lead
Optional: 2S2M or 4S2M on Rear
Axle Spread Lead - 60" Tridem, Rear - 49" Tandem, 77 1/2" Track Width
Auto Slack Adjusters Gunite
Spring Brake Pots 30/30 TSE Omnibrake
Optional: TSE Ultra-Life
5th Wheel
Jost Lower 5th Wheel Plate on Rear Trailer
Optional:  Doepker Lower Oscillating 5th Wheel
Wheel End
Duralight Hub with Centrifuse Drum
Optional:  Cast Hub & Drum
Optional:  Hubodometer - Metric or Imperial



Tarp Michels Side Rolling: Select or Maximizer
Tarp Openers Short Cranks at Center
Optional:  Electric Opener System
Other Options Quick Release Tarp Stops; 100% Heat Sealed Instead of Sewn
Environmental Design (Single or Double Tarps)



Wiring Harness Severe Duty Sealed Harness System
Custom Designed by Trucklite for our Light Packages
Lighting Trucklite LED as per CMVSS with Side Signals
Optional:  Various Custom Packages and Designs Available




Full Width at Landing Gear, Ahead of Brake Pots on 1st Axle, Mudflap on Back Hopper on both Lead & Rear
Optional:  In Front of Brake Pots on All Axles and 3 Ahead of Back Hopper on both Lead & Rear
Stoneguards at Front of Lead Trailer
1/2 Round Fenders at Back of Each Trailer:  Aluminum or Optional Stainless Steel
3 Tier Pedestal Step at Back of Lead Between Fenders
Impact Guard Rear Impact Guard with Doepker Logo in ICC Panel
Optional: Custom Name in ICC Panel (Maximum 7 Letters)
Toolbox Size & Style Optional:  Aluminum at Front of Lead or Back of Rear
Placard Holders Optional:  On Each Sidewall - Lead & Rear
Auto Grease System Optional:  Groenveld (CPL) Auto Grease System
Dollie Pad Carriers Optional:  Aluminum On Lead - 1 per side





Doepker Industries Ltd. provides 100% parts and Labor coverage on all components for a period of 90 days from in-service date with the exception of tires and ABS sensor alignment.  After the 90 day period, supplier warranty coverage applies.  Consequential damage is not covered.

  STRUCTURE:5 Year:  100% Parts and LaborPAINT:1 Year:  Workmanship
1 Year:  Material as per Manufacturer WarrantySLOPE SHEETS:5 Year:  Defects in Workmanship and MaterialWHEEL ALIGNMENT:30 Days:  From In-service Date


Wiring Corrosion1 Year:  100% parts and Labor against corrosion on greased electrical wiring and greased ABS connectionsTrucklite Wiring Harness5 Year:  Harness and junction box for manufacture defects.  Parts replacement only  Corrosion is not accepted as warrantable beyond the Doepker coverageTrucklite LightsLifetime:  LED lights for manufacture defects.  Parts replacement only
Corrosion is not accepted as warrantable beyond the Doepker coverageDoepker Wiring & Install1 Year:  100% parts and Labor due to manufacturing defect or workmanship


Sealco2 Year:  From manufacture of valve.  100% parts replacement and Labor
allowance for defects in material or workmanshipBendix1 Year:  From in-service date.  100% parts replacement and Labor
allowance for defects in material or workmanshipMeritor Wabco ABS3 Year or 300,000 Mile:  100% parts replacement and Labor allowanceWheel Sensor Alignment30 Day


Alum / Galvanized / Steel6 Month:  From date of installation against defective workmanship.  Parts
replacement onlyMinimizer (Plastic)Click here for manufacturer's warranty details


Steel (Hayes Lemmerz)5 Year:  From date of manufacture if unserviceable due to functional defects
in material or workmanshipAluminum (Alcoa)5 Year:  From date of manufacture for defects in material or workmanship


Jost 37 Series 5th Wheel5 Year:  Parts and Labor for defects in material and workmanshipJost Landing Gear (Mag 500)5 Year:  Parts and Labor for defects in material and workmanshipJost King Pin5 Year:  Parts and Labor for defects in material and workmanship  Holland 5th Wheel (3500)
 Lifetime:  For defects in material or workmanship
6 Year or 600,000 Mile:  On wear limits and cracks on standard duty applications
Labor allowance is considered for removal, repair, and replacementHolland Landing Gear5 Year:  Parts replacement from date of manufacture for defects in workmanship
2 Year:  Labor allowance is considered for removal, repair, and replacementHolland King Pin2 Year:  Material or workmanship.  Parts only.


TiresAs per manufacturer's warrantyKML Bearings1 Year:  From manufacture date free from defects and workmanship.  Parts only.Stemco Seals1 Year:  From manufacture date.  Parts and Labor.KIC DrumsLimited Lifetime:  For manufacture defectsWalther Dura-Light HubsLifetime:  For manufacture defectsBrake Shoe and Lining1 Year or 100,000 Mile:  Parts and Labor for manufacture defectsTSE OmniBrake Brake Pots4 Year Standard Warranty; 5 Year Extended Warranty for National Fleet PartnersTSE UltraLife Brake Pots6 Year Standard Warranty; 7 Year Extended Warranty for National Fleet PartnersMeritor Slack Adjusters5 Year/500,000 Miles: Parts. 1 Year/Unlimited: Parts & Labour


HXL5 Greased Wheel End5 Year:  On-Highway - Parts and Labor
3 Year:  Off-Road - Parts and LaborHendrickson (incl trailing arms)5 Year:  Parts  -  1 Year Labor


Hendrickson Air Spring2 Year or 200,000 Mile:  100% parts replacement
1 Year or 100,000 Mile:  LaborHendrickson Shock Absorber2 Year or 200,000 Mile:  100% parts replacement and Labor allowanceTri-Functional Bushing
(incl wear pads)
5 Year or 500,000 Mile:  100% parts replacement
3 Year or 300,000 Mile:  Labor allowanceHendrickson Camshafts3 Year or 300,000 Mile:  100% parts replacement
1 Year or 100,000 Mile:  Labor allowanceHendrickson CamtubesHighway:  3 Year:  Parts and Labor
Off-Highway:  3 Year Parts  -  1 Year Labor


Michels' Tarp and HardwarePro-rated:  Varies with tarp style and typeMichels' Augers1 Year:  100% parts and Labor for manufacture defects and workmanshipHydraulic Valves and PlumbingGuaranteed against manufacture defects on individual basisAccessories1 Year:  100% parts and Labor from in-service date for manufacture defects and
installation on all Doepker Accessories (IE:  Toolboxes, fenders, ladders, pipe bunks…)

*Warranty is based on normal use, proper maintenance and does not cover wearable items or consequential damage at anytime.


*  Used as a guideline only and deemed accurate at time of publishing.  Subject to change without notice based on trailer model year, components used and manufacturer changes.  See dealer / component website and literature for more details.
