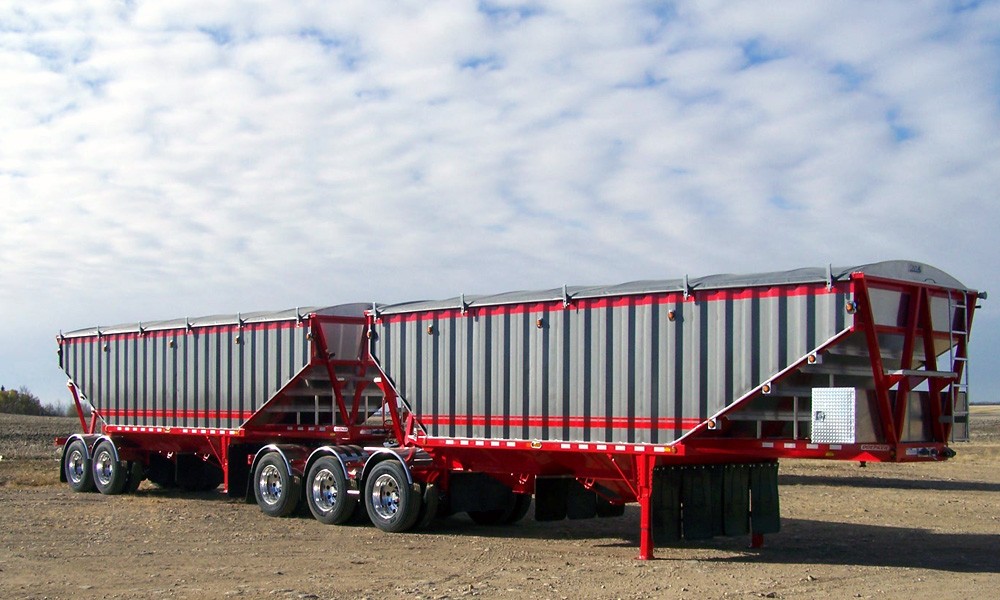

Classic Open End Super B Grain Trailer

Building trailers since 1972 has allowed us to lead the industry with continuous industry changing designs.  The open end bulker design is no exception.  Delivering the first open end bulker the market had ever seen in 1997 changed everything, including the industry.  Our design in so strong, it is backed by a 5 year 100% structural warranty.  Our highly engineered design is so light, aluminum trailers with the same options are still trying to shed about 1 Ton of weight to compete.  Using very specific high value, stronger metals in combination with a unique engineered design ensures the longest lasting trailer on market.  Many have tried to copy our legendary design, however none have succeeded.  Since 2001, we have added sophisticated and proven finishes that we still continually test and re-formulate.  One example is our application of unique and special blended 100% pure zinc to the complete steel outside designed to combat Canadian road contaminants.  Giving you the opportunity to achieve a 46.5 Tonne payload and offering the best resell value in its class, this trailer is one of the most popular solutions for many users.  Many configurations are available including an Eastern Super B that is shorter in overall length.   Higher wall heights are also available to support product hauls such as fescue.  Visit your local dealer to view and discuss all of the great and numerous Doepker advantages and options on this trailer.


Download ouR Brochure

Features

STANDARD FEATURES:



Length 27'10" Lead;  30' Rear;  62' 1-1/16" Overall
Capacity Lead Approx 1435 Cu Ft;  Rear Approx 1555 Cu Ft
Tare Weight Approx 20,600 Lbs with Standard Equipment
GVWR Lead Approx 35000 Kg;  Rear Approx 35000 Kg
Landing Gear Jost Magnum 2 Speed Sealed Unit
King Pin Lead Set at 30" with 1/4" Coupler Plate;  Rear Set at 18" with 1/4" Coupler Plate
Catwalks and Ladders Aluminum on Outside, Alum / Steel on Inside
Walls

16 Gauge Steel Panel, 4" Vertical Corrugations, Straight Ends
Wall Height: 72" (79" Overall) - 136" to Top of Tarp Hood
Optional: 76" (83" Overall) - 140" to Top of Tarp Hood
Hoppers


14 Gauge Steel; Rack & Pinion Chutes
16" X 24" Openings; 22" Ground Clearance on 22.5 Tires
Optional:  D/S or C/S Side Chute Delivery
Optional Vibrator System:  Complete with Hoses; Brackets Only C/S or D/S
Chute Lids Self Cleaning, Opens Past Hopper, Quick Detach
Chute Cranks D/S and C/S
Optional:  D/S only
Slopes 14 Gauge Plain Aluminum Slope Sheet and End Wall
Air System



Aluminum Air Tanks
Inline Air Filtration System Built into Glad hands
Air Gauge Box with Window
Optional:  Air Chuck in Air Gauge Box
Optional:  Relocate Air Guage Box From Back of Rear Trailer to Front of Rear Trailer
Tow Hooks At Back of Rear Trailer
Tires Michelin
Rims 22.5 or 24.5:  Various Steel and Aluminum Options
Serial Plate(s) Canada / U.S
Safety Certified Yes


SUSPENSION:



System


Hendrickson Intraax AANT 23K LDA 15" Air Ride - HXL5 Hendrickson Long Life Dressed Axle
Optional:  Hendrickson CP TireMax Inflation System
Optional:  Doepker Auto Lift Management System with Meritor Control Valve
Optional:  Truckweight Wireless Scale System
Wheel Seals Federal Mogul
Brakes 16 1/2" X 7" Extended Life
Optional: Bendix Air Disc Brakes
AntiLock Braking System

Meritor Wabco 2S2M (2 Sensors / 2 Modulators)  on Lead, 2S1M (2 Sensors / 1 Modulator) on Rear
Optional: 4S2M (4 Sensors / 2 Modulators) or 6S4M (6 Sensors / 4 Modulators) with 2 indicator lights on Lead
Optional: 2S2M (2 Sensors / 2 Modulators) or 4S2M (4 Sensors / 2 Modulators) on Rear
Axle Spread Lead - 60" Tridem, Rear - 49" Tandem, 77 1/2" Track Width
Auto Slack Adjusters Gunite
Spring Brake Pots 30/30 TSE Omnibrake
Optional: TSE Ultra-Life
5th Wheel Compensator Optional:  Doepker Lower Oscillating 5th Wheel
Optional:  Holland Lower Oscilating 5th Wheel
Wheel End

Cast Hub and Drum
Optional:  Duralight Hub and Centrifuse Drum Combinations
Optional:  Hubodometer - Metric or Imperial


PAINT AND FINISH:



Blast Preparation Completely Steel Shot Blasted
Special Coatings Pure Zinc on Complete Outside Top To Bottom
Duraguard Complete Undercarriage from Hoppers Down
Primer PPG Epoxy Primer Inside and Out
Top Coat PPG Urethane / Acrycote Systems - All Colours Available
Professional Cure System Entire Trailer put in Heat Ovens for Optimal Paint Adhesion
Safety Reflective Tape
Sealing Systems Silicone on Inside Wall Seams / Slope Sheet Seams


TARP:



Tarp Michels Side Rolling: Select or Maximizer
Tarp Openers Short Cranks at Center
Optional: Electric Opener System
Other Options Quick Release Tarp Stops; 100% Heat Sealed Instead of Sewn
Environmental Design (Single or Double Tarps)


LIGHTING:



Wiring Harness Severe Duty Sealed Harness System
Custom Designed by Trucklite for our Light Packages
Lighting Trucklite LED as per CMVSS with Side Signals
Optional:  Various Custom Packages and Designs Available


PROTECTIVE FEATURES:



Mudflaps Full Width at Landing Gear, Ahead of Brake Pots on 1st Axle, Mudflap on Back Hopper on both Lead & Rear
Optional:  In Front of Brake Pots on All Axles and 3 Ahead of Back Hopper on both Lead & Rear
Fenders


Stoneguards at Front of Lead Trailer
Aluminum Checkerplate Flat Fenders at Back of Each Trailer
Optional: Stoneguards at Front of Rear Trailer
Optional: 1/2 Round Fenders at Back of Each Trailer - Aluminum or Stainless Steel c/w Pedestal Step on Lead
Impact Guard Rear Impact Guard with Doepker Logo in ICC Panel
Optional: Custom Name in ICC Panel (Maximum 7 Letters)
Toolbox Size & Style Optional:  Aluminum at Front of Lead or Back of Rear - Fits Under Slope Area on Open End
Hazardous Placard Holders Optional:  On Each Sidewall - Lead & Rear
Auto Grease System Optional:  Groenveld (CPL) Auto Grease System
Aluminum Dollie Pad Carriers Optional:  On Lead - 1 per side




photos


Doepker Industries Ltd. provides 100% parts and Labor coverage on all components for a period of 90 days from in-service date with the exception of tires and ABS sensor alignment.  After the 90 day period, supplier warranty coverage applies.  Consequential damage is not covered.

  STRUCTURE:5 Year:  100% Parts and LaborPAINT:1 Year:  Workmanship
1 Year:  Material as per Manufacturer WarrantySLOPE SHEETS:5 Year:  Defects in Workmanship and MaterialWHEEL ALIGNMENT:30 Days:  From In-service Date

WIRING

Wiring Corrosion1 Year:  100% parts and Labor against corrosion on greased electrical wiring and greased ABS connectionsTrucklite Wiring Harness5 Year:  Harness and junction box for manufacture defects.  Parts replacement only  Corrosion is not accepted as warrantable beyond the Doepker coverageTrucklite LightsLifetime:  LED lights for manufacture defects.  Parts replacement only
Corrosion is not accepted as warrantable beyond the Doepker coverageDoepker Wiring & Install1 Year:  100% parts and Labor due to manufacturing defect or workmanship

VALVES

Sealco2 Year:  From manufacture of valve.  100% parts replacement and Labor
allowance for defects in material or workmanshipBendix1 Year:  From in-service date.  100% parts replacement and Labor
allowance for defects in material or workmanshipMeritor Wabco ABS3 Year or 300,000 Mile:  100% parts replacement and Labor allowanceWheel Sensor Alignment30 Day

FENDERS

Alum / Galvanized / Steel6 Month:  From date of installation against defective workmanship.  Parts
replacement onlyMinimizer (Plastic)Click here for manufacturer's warranty details

RIMS

Steel (Hayes Lemmerz)5 Year:  From date of manufacture if unserviceable due to functional defects
in material or workmanshipAluminum (Alcoa)5 Year:  From date of manufacture for defects in material or workmanship

5th WHEEL / LANDING GEAR

Jost 37 Series 5th Wheel5 Year:  Parts and Labor for defects in material and workmanshipJost Landing Gear (Mag 500)5 Year:  Parts and Labor for defects in material and workmanshipJost King Pin5 Year:  Parts and Labor for defects in material and workmanship  Holland 5th Wheel (3500)
 Lifetime:  For defects in material or workmanship
6 Year or 600,000 Mile:  On wear limits and cracks on standard duty applications
Labor allowance is considered for removal, repair, and replacementHolland Landing Gear5 Year:  Parts replacement from date of manufacture for defects in workmanship
2 Year:  Labor allowance is considered for removal, repair, and replacementHolland King Pin2 Year:  Material or workmanship.  Parts only.

WHEEL END

TiresAs per manufacturer's warrantyKML Bearings1 Year:  From manufacture date free from defects and workmanship.  Parts only.Stemco Seals1 Year:  From manufacture date.  Parts and Labor.KIC DrumsLimited Lifetime:  For manufacture defectsWalther Dura-Light HubsLifetime:  For manufacture defectsBrake Shoe and Lining1 Year or 100,000 Mile:  Parts and Labor for manufacture defectsTSE OmniBrake Brake Pots4 Year Standard Warranty; 5 Year Extended Warranty for National Fleet PartnersTSE UltraLife Brake Pots6 Year Standard Warranty; 7 Year Extended Warranty for National Fleet PartnersMeritor Slack Adjusters5 Year/500,000 Miles: Parts. 1 Year/Unlimited: Parts & Labour

AXLES

HXL5 Greased Wheel End5 Year:  On-Highway - Parts and Labor
3 Year:  Off-Road - Parts and LaborHendrickson (incl trailing arms)5 Year:  Parts  -  1 Year Labor

AIR SUSPENSION

Hendrickson Air Spring2 Year or 200,000 Mile:  100% parts replacement
1 Year or 100,000 Mile:  LaborHendrickson Shock Absorber2 Year or 200,000 Mile:  100% parts replacement and Labor allowanceTri-Functional Bushing
(incl wear pads)
5 Year or 500,000 Mile:  100% parts replacement
3 Year or 300,000 Mile:  Labor allowanceHendrickson Camshafts3 Year or 300,000 Mile:  100% parts replacement
1 Year or 100,000 Mile:  Labor allowanceHendrickson CamtubesHighway:  3 Year:  Parts and Labor
Off-Highway:  3 Year Parts  -  1 Year Labor

MISCELLANEOUS

Michels' Tarp and HardwarePro-rated:  Varies with tarp style and typeMichels' Augers1 Year:  100% parts and Labor for manufacture defects and workmanshipHydraulic Valves and PlumbingGuaranteed against manufacture defects on individual basisAccessories1 Year:  100% parts and Labor from in-service date for manufacture defects and
installation on all Doepker Accessories (IE:  Toolboxes, fenders, ladders, pipe bunks…)

*Warranty is based on normal use, proper maintenance and does not cover wearable items or consequential damage at anytime.



*  Used as a guideline only and deemed accurate at time of publishing.  Subject to change without notice based on trailer model year, components used and manufacturer changes.  See dealer / component website and literature for more details.
